The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 240x128LCM Graphic/HTM240128A | Graphic LCM | 240x128 |
|
144..0x104.0x14.6 | 114.0x64.0 | 107.95x57.55 | 0.45x0.41 | 6H | WHITE | 21PIN | MCU | -20~70℃ | 5.0V | |||

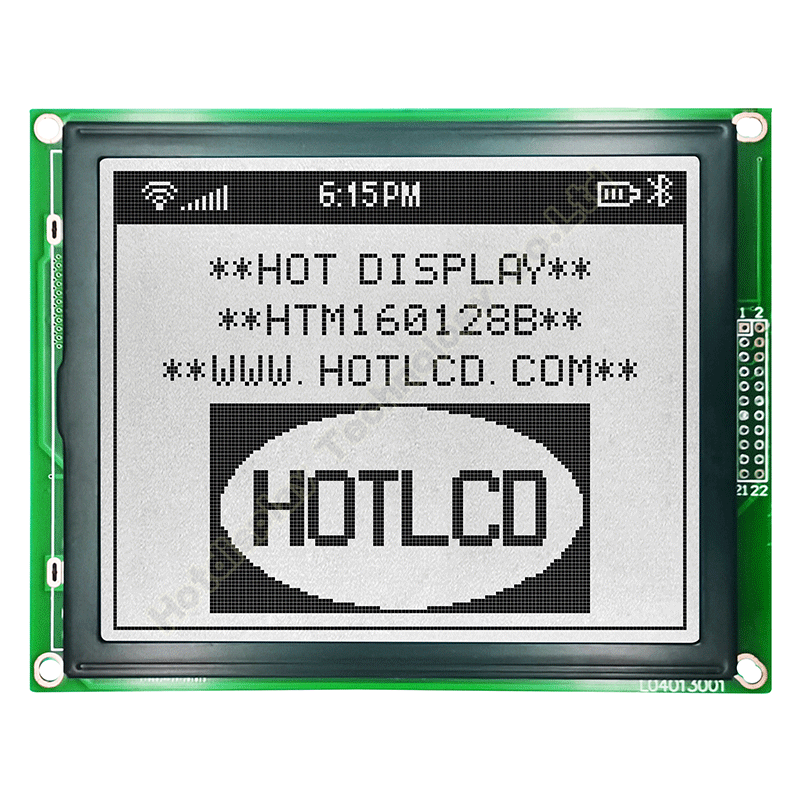

| 160x128 LCM Graphic/HTM160128B | Graphic LCM | 160x128 |
|
129.0x102.0x8.6 | 101.0x82.0 | 92.76x74.2 | 0.58x0.54 | 6H | WHITE | 22PIN | MCU | -20~70℃ | 5.0v | RA6963 |
