Location：Home  >  Product center  >  TFT display  >  TFT display standard products | Full-view TFT color screen | High-brightness series TFT  >  8.0英寸IPS全視角彩屏/800x1280分辨率/帶電容屏/控制器JD9635/MIPI接口/安卓/TFT-H080A11HDIFT4C30

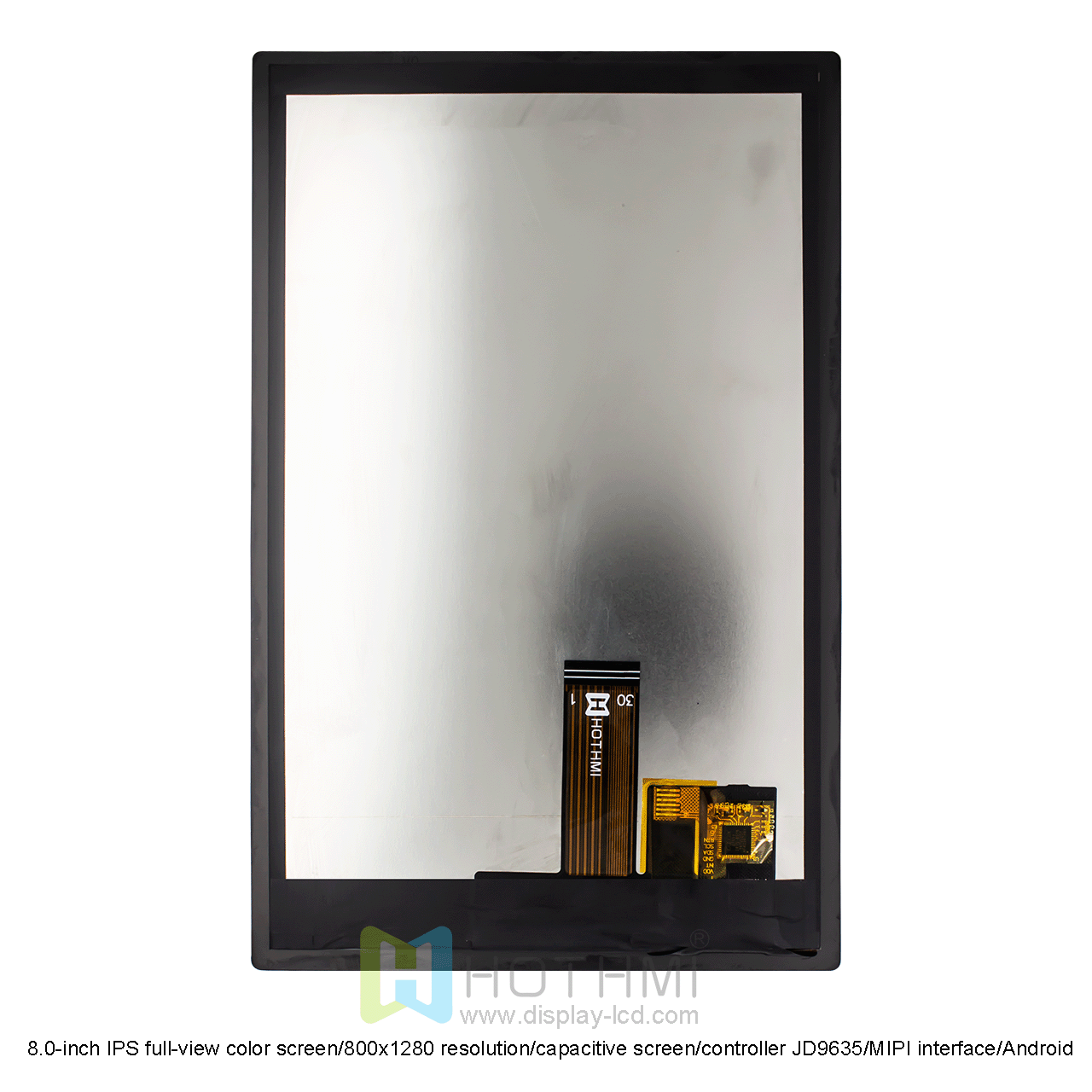

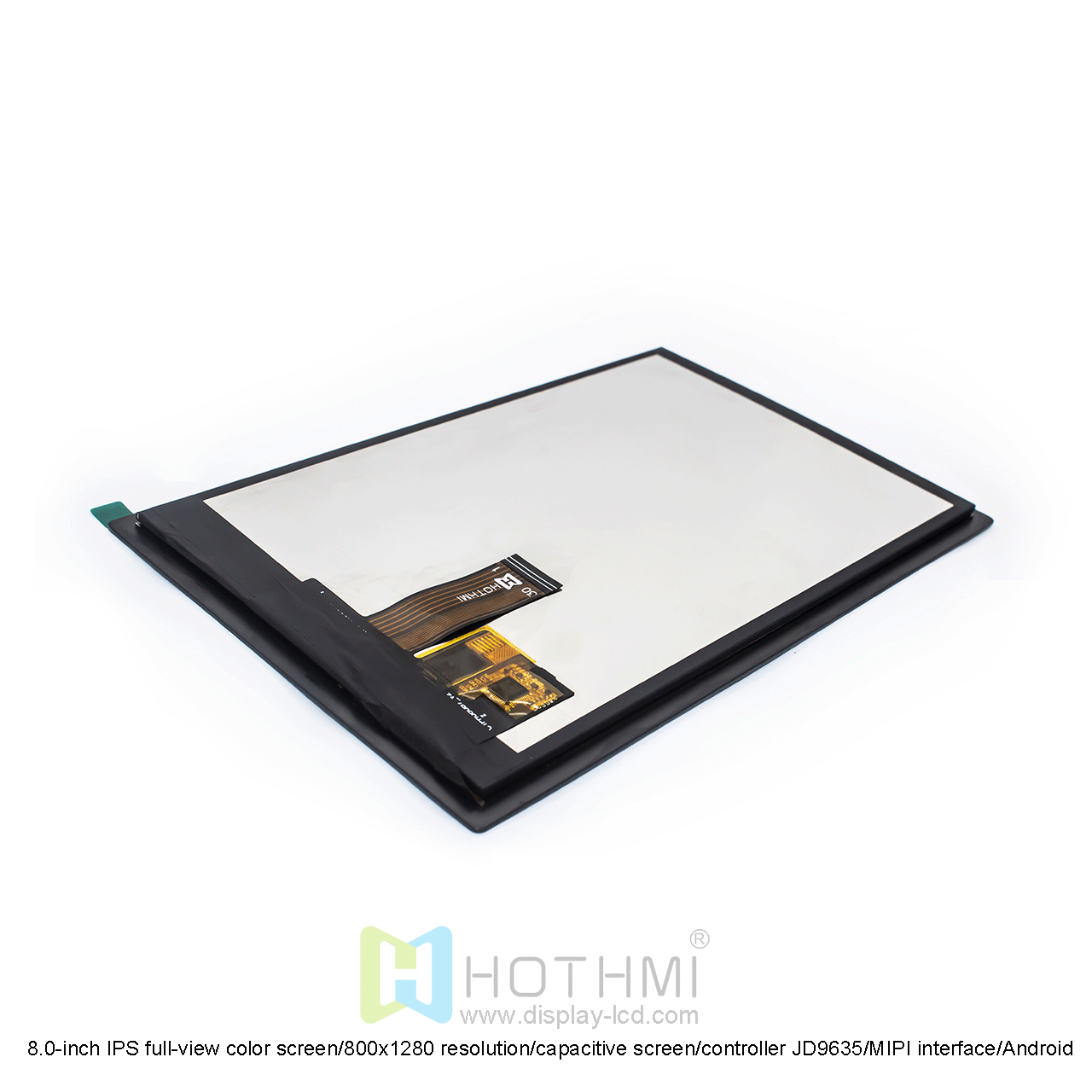

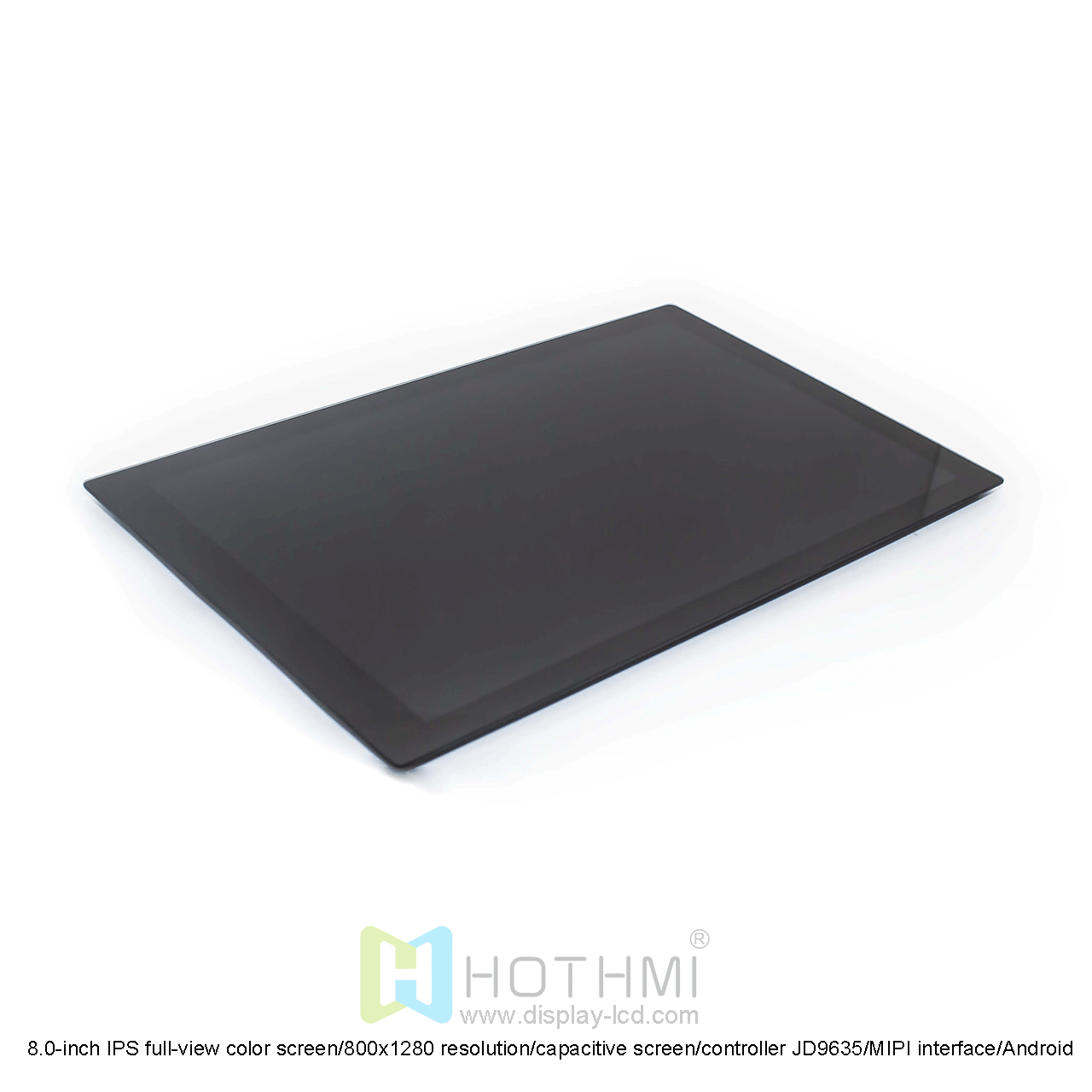

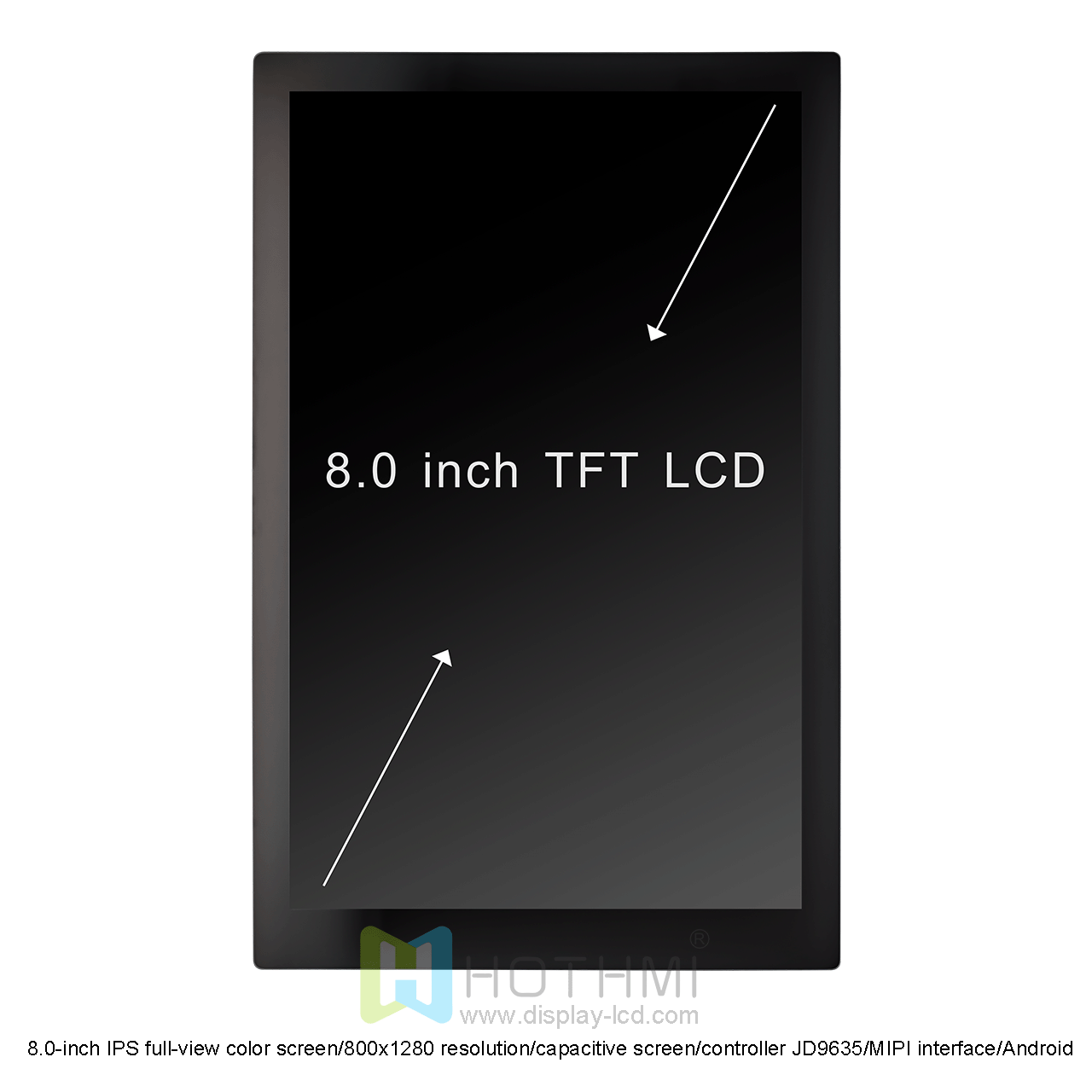

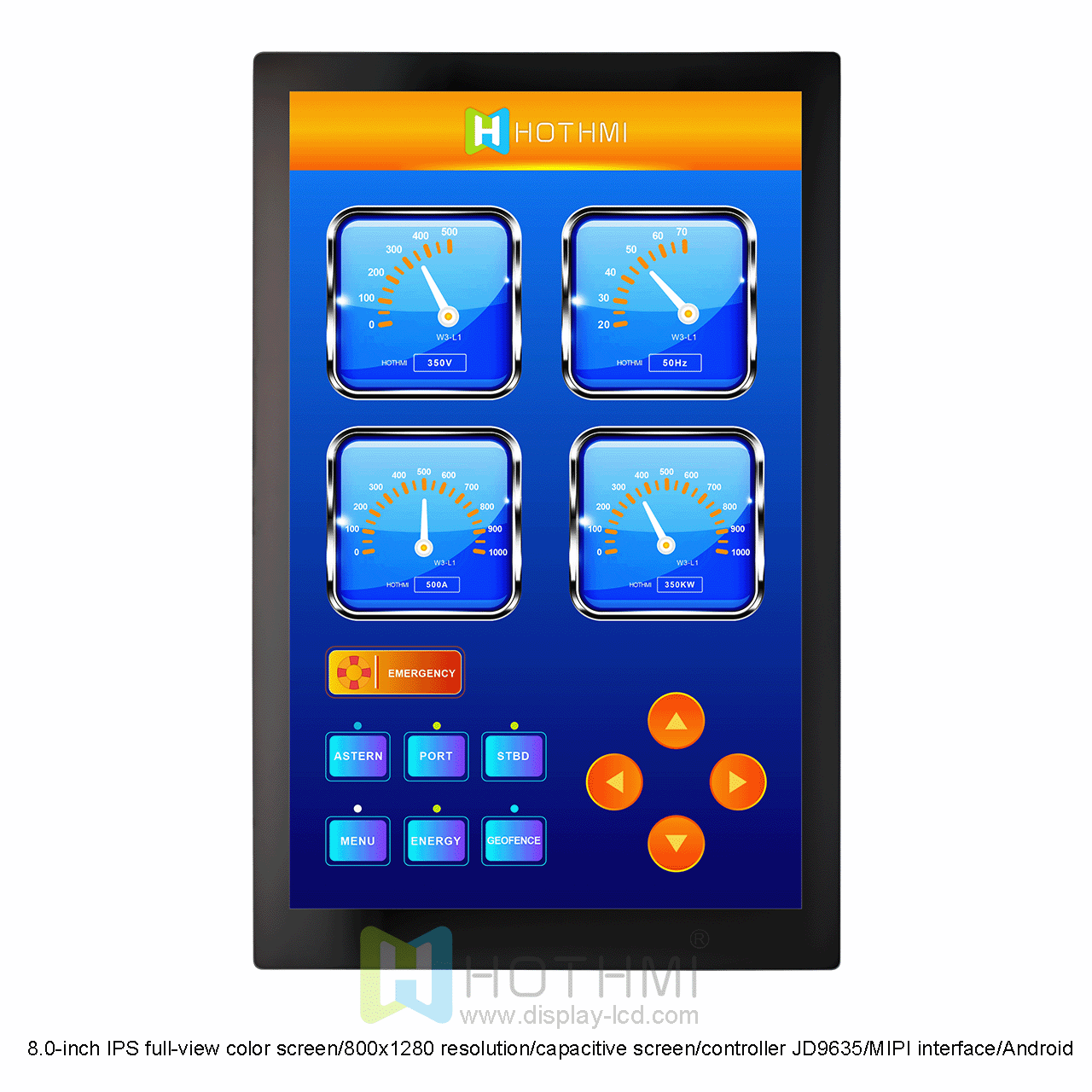

  • Model : 8.0-inch IPS full-view color screen/800x1280 resolution/capacitive screen/controller JD9635/MIPI interface/Android/TFT-H080A11HDIFT4C30

    Product type：TFT LCD

    Show contents：800x1280

    Outline size(mm) ：124.6x194.1x4.7

    Size of View Window(mm)：8.0

    Display size(mm) ：8.0

    Effective size(mm)：107.64x172.224

    Product application：Vehicle, medical, industrial control

    Visual angle：IPS

    Backlight type or brightness：450cd/m2

    Connection PIN Number：FPC-30PIN

    Interface mode：MIPI 4L

    Special instructions：Anti-static ESD 8KV

    Working temperature：-20~70℃

    Power supply voltage：3.3V

    Driver chip model：JD9635

    PDF download
Product description

  • TFT-H080A11HDIFT4C30 | 8" IPS TFT LCD | MIPI DSI Interface | 800x1280 px High Resolution LCD Screen | Sunlight Readable Display | With Capacitive Touch

    This 8.0" IPS TFT LCD display features a high resolution of 800x1280 pixels and built-in EMI shielding. This TFT includes a 450 nits high brightness LED backlight. Because this LCD has built-in IPS technology, this display features amazing clarity, superior color reproduction, better image consistency, and high contrast at full viewing angles. The ultra-bright backlight makes this TFT sunlight readable in bright conditions including direct sunlight. Compliant with EU standards and ROHS certification.
